AC current regulator -- help please

Also covers batteries and chargers

Postby Elektor Editor » Wed May 30, 2007 12:00 am

[the following query is posted 'as is' by the Editor on behalf of a reader, replies are invited]

Which IC can implement the function of "an alternating current regulator", meaning - there is alternating tension (rectangular) of a few tens of hertz at the input which should provide 100 mA constantly, keeping the same wave shape (rectangular) .

This means that it should provide constant current for any variations of the load.

The load varies within such values that it is not necessary for the tension to exceed the limits of 0.1 Vac, respectively 30Vac.

Hypothesis :
- 100 mA;
- constant;
- alternanting (rectangular) ;
- limits voltage max. 30 Vca;

who knows:
- an IC to make this function)?;
or
- a suiatble circuit diagram ?;

Best regards,
Adrian
Elektor Editor

Posts: 467
Joined: Thu Jan 02, 2014 10:36 am

Postby 313002 » Wed May 30, 2007 12:00 am

The first thing that comes to my mind is to try
to use the same principle as is used in Audio amplifiers.

Place a resistor of 6 ohms in series with the
both the NPN and PNP transistor output stage.
Then add a current limiting transistor on the
output transistor base.
313002

Posts: 73
Joined: Thu Jan 02, 2014 10:44 am

Postby sjb » Thu Nov 18, 2010 12:00 am

In = -0V1...+0V1
Out = -0A1...+0A1
1. Voltage-->Voltage: -0V1...+0V1 --> +0V0..+0V2
2. Voltage-->Current: +0V0..+0V2 --> +0A0...+0A2
3. Place a parallel current source, '-0A1'
+0A0 - 0A1 = -0A1
+0A2 - 0A1 = +0A1


----( -> )---- //AC, 0.0..+0.2A
-----| |------ //Output, -0.1..+0.1A
---- (<- )---- //Fixed, -0.1A
sjb

Posts: 10
Joined: Thu Jan 02, 2014 10:39 am

Postby anneo » Thu Nov 18, 2010 12:00 am

You can try a circuit like this.Goes from 0V (short) to 30V,always 100mA.
The BD139/BD140 shout be cooled.(Max.3W each)
Sinds you didn't specify the input,calculate the R as needed.
Input current +-50µA.
Anne
Attachments
anneo

Posts: 1339
Joined: Thu Jan 02, 2014 10:36 am

Postby sjb » Fri Nov 19, 2010 12:00 am

Another possibility is the Howland Current Source.
sjb

Posts: 10
Joined: Thu Jan 02, 2014 10:39 am

Postby sjb » Fri Nov 19, 2010 12:00 am

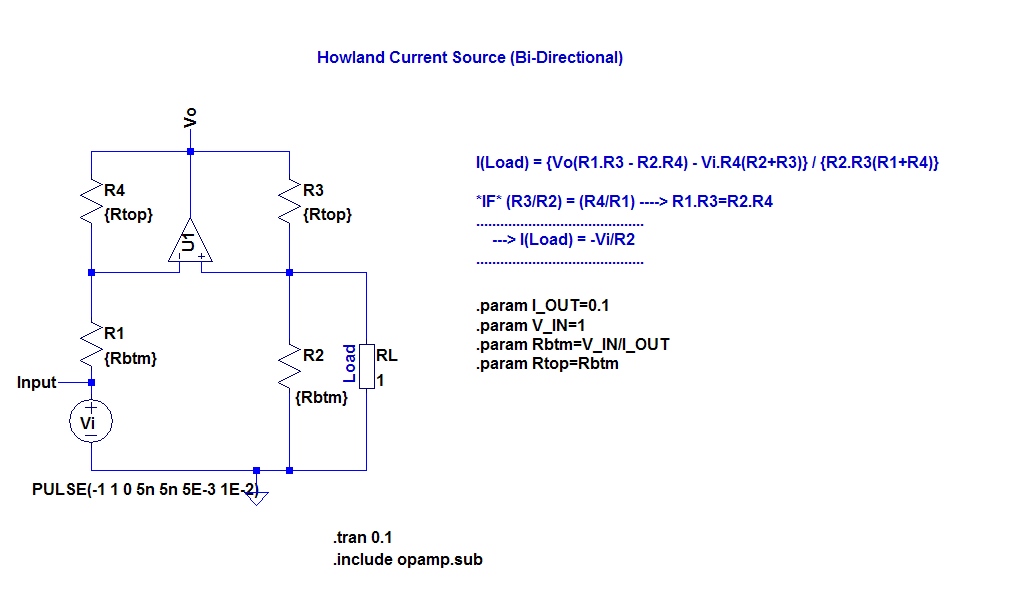

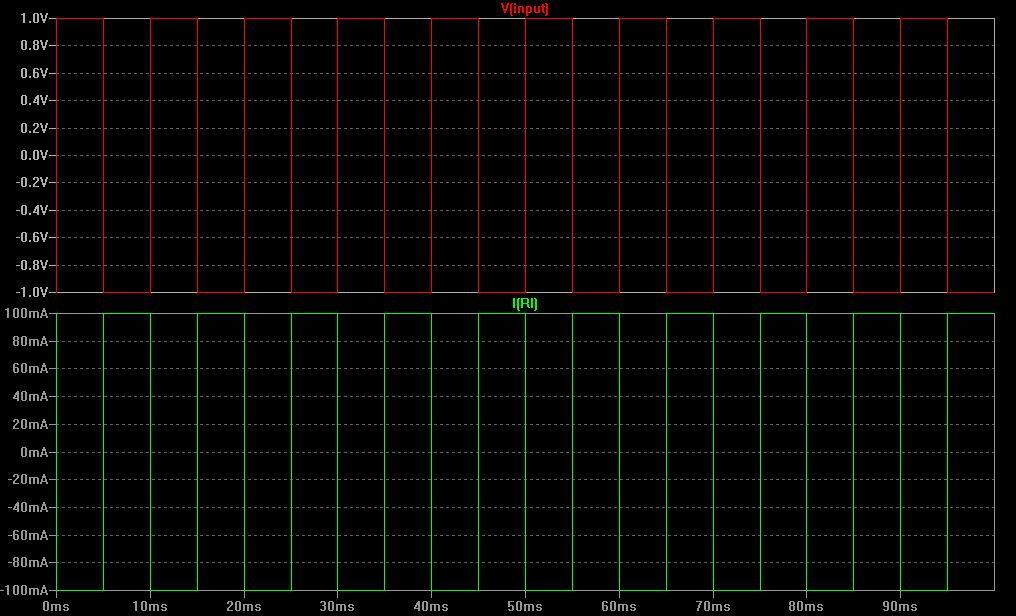

Here is a Howland Current Source done in LTSpice. Choose all R the same for simplicity as Vin/I (here, 10R).
Attachments

[The extension asc has been deactivated and can no longer be displayed.]

sjb

Posts: 10
Joined: Thu Jan 02, 2014 10:39 am

Postby anneo » Fri Nov 19, 2010 12:00 am

Very nice,now all you have to do is find an amp for +-40V at 100mA !
Anne
anneo

Posts: 1339
Joined: Thu Jan 02, 2014 10:36 am

Postby thanx » Mon Nov 22, 2010 12:00 am

The first thing that comes to my mind is to try
to use the same principle as is used in Audio amplifiers.
thanx

Posts: 26
Joined: Thu Jan 02, 2014 10:36 am
