WheelieII CPU problem

[marcink]

Helo!
My name is Marcin and i am from Poland. I have mount CPU and sensorboard version 2.7 and i cannot make these things working. After some consultations with professionals it seems that pcb's are properly mounted and soldered. I can easily program both atmegas but nothing is shown in telemetrie after connecting to PC. I have found i the internet sligthly different sourcecode named WOF105 - is it correct source code to my pcb's?
I would like to ask few questions which maybe make all clear for me.

-Which sourcecode should i upload to atmega32 ? WOF104 or WOF105 ?
Link to WOF105
-in WOF104 some LEDs are mentioned but there are no LEDs in my PCB'c - why ?
-what is a difference between code in C and in BASCOM on website
http://www.gerold-online.de/cms/wheelie/mein-wheelie/quellcodes.html
-is it necessary to program atmega88 to run telemetrie?
-i was trying this program for telemetrie http://www.gerold-online.de/cms/fileadmin/downloads/Wheelie/setup.exe is it correct ?

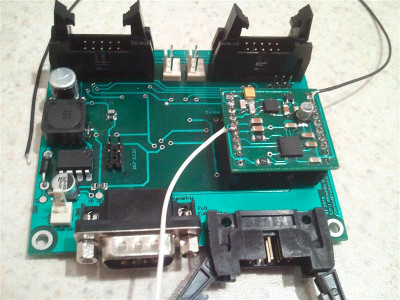

I am attaching photo of my PCBs'

[guenter]

Hello Marcin,

I have found i the internet sligthly different sourcecode named WOF105 - is it correct source code to my pcb's?

Yes.

-Which sourcecode should i upload to atmega32 ? WOF104 or WOF105 ?

WOF105

-in WOF104 some LEDs are mentioned but there are no LEDs in my PCB'c - why ?

Because the Wheelie1 have LEDs, so you can use the code for both Versions

-what is a difference between code in C and in BASCOM on website
http://www.gerold-online.de/cms/wheelie/mein-wheelie/quellcodes.html

In the C-Code i use Kalmanfilters, other Geartoothsensors and it is no longer compatible to the Wheelie1 Boards.

-is it necessary to program atmega88 to run telemetrie?

YES!! Without an programmed ATMega88 there is no I2C Communication. At power up the ATMega32 waits until there is Data from the Mega88.

-i was trying this program for telemetrie http://www.gerold-online.de/cms/fileadmin/downloads/Wheelie/setup.exe is it correct ?

Yes.
I am attaching both Hexfiles.
Have you an Multimeter and an Oscilloscope? So we can find the problems step by step.

Günter

[marcink]

Thank you very much for your answers
I forgot to mention that i am using atmega168 instead of atmega88 - could you attach hexfile for at168?
Tommorrow i will try to program both atmegas and check connection to telemetrie once again.
I have multimeter and i can use my friends osciloscope so if reprogramming atmegas does not help i would be glad if you could help me step by step.

Marcin'

[guenter]

For M168

[casper408]

Hello,

one important thing: You have installed a horizontal connector for K9. There is provided a vertical connector. The pins are now rotated 180 degrees ...
You must install a vertical connector or adjust the wire to the switch.

[marcink]

Helo casper408!
I couldn't find 3rd horizontal connector thats why i had to use vertical but all connections i have made according to diagram with multimeter so i thinks its correct.

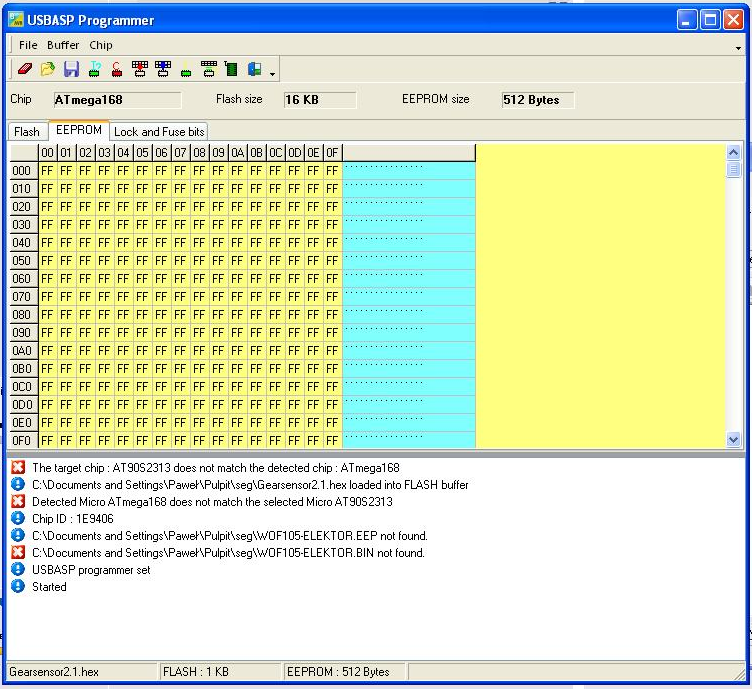

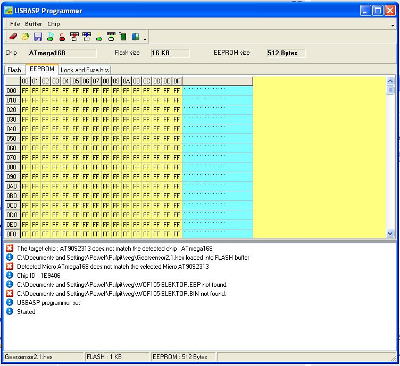

Today my friend tried to program atmegas with hexfiles attached by guenter but without success. Probably these hexfiles are compiled for different microchips. Here is printscreen with error :
In the log, firstly he loaded file WOF105 by mistake but top 2 lines shows that loading Gearsensor2.1 (for AT168) causes error

[guenter]

Once again...

[marcink]

Thank you for help. Finally i got CPU working.
Connection to telemetrie is done and all sensors are working.
Now its time for construction - i will post photos when i finisched

Thank you
Marcin
