by eminence2001 » Thu Feb 28, 2013 12:00 am

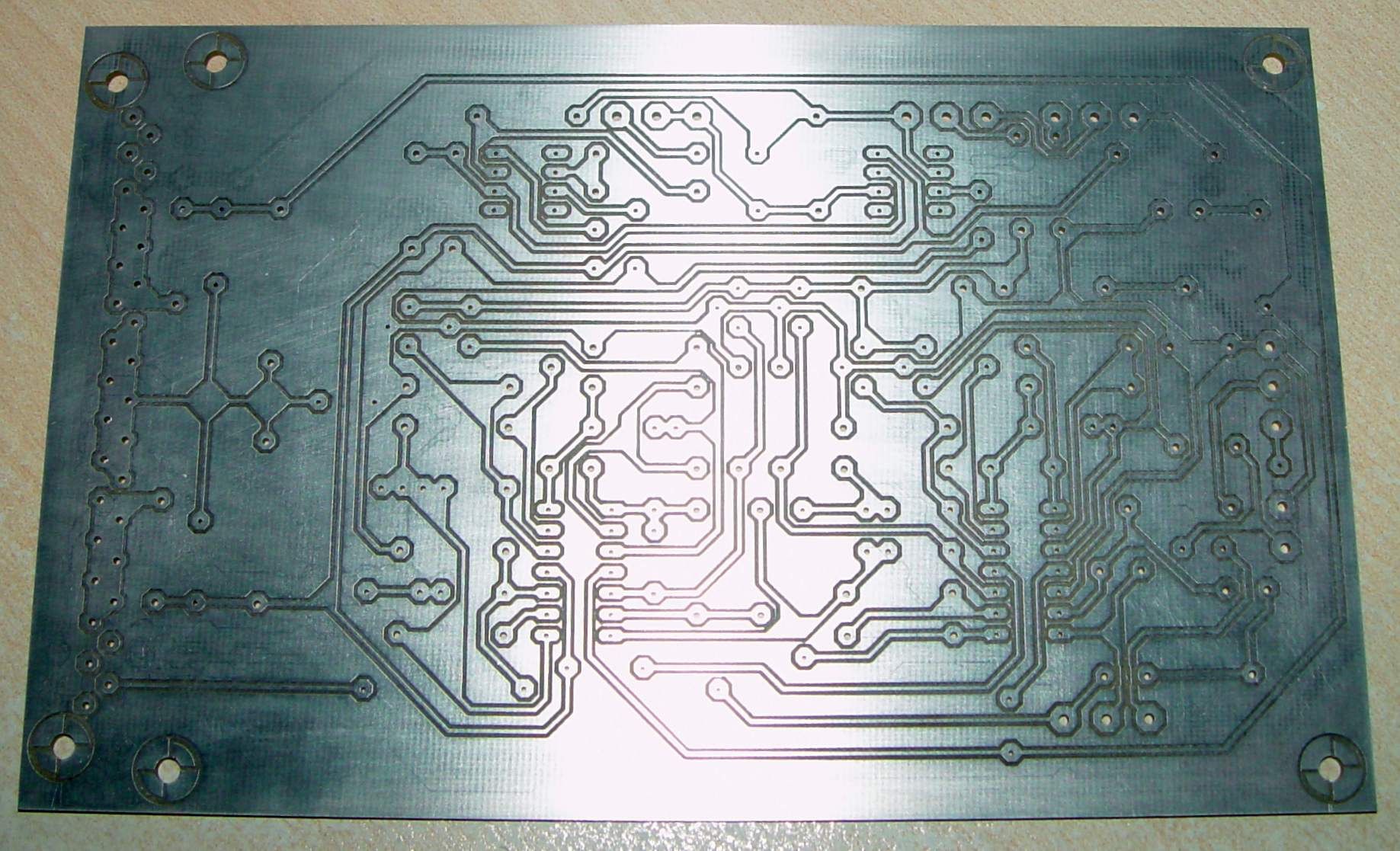

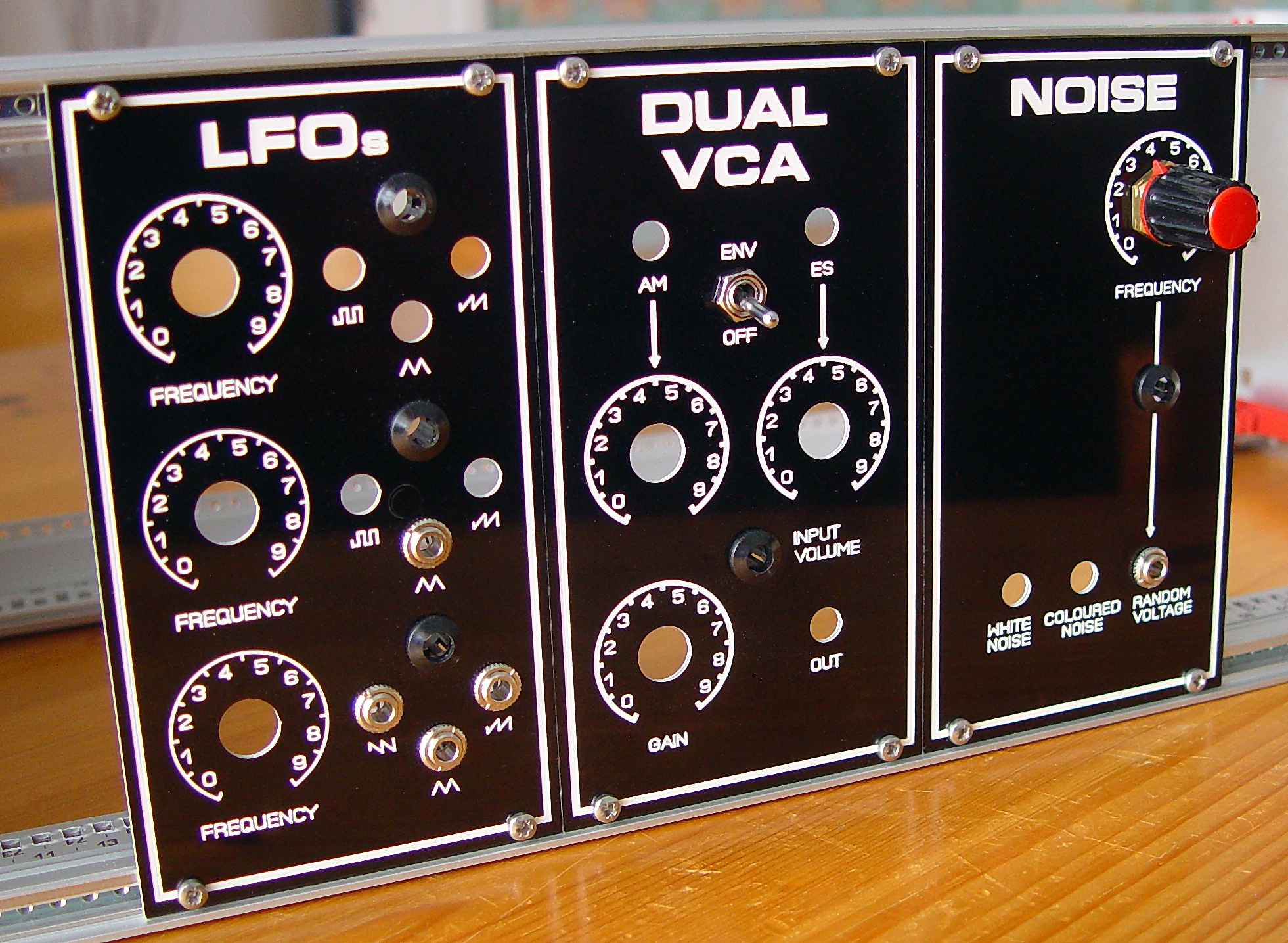

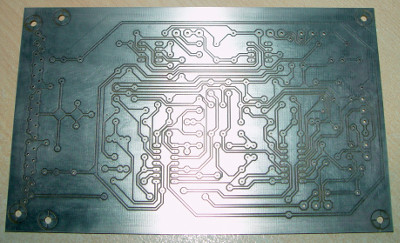

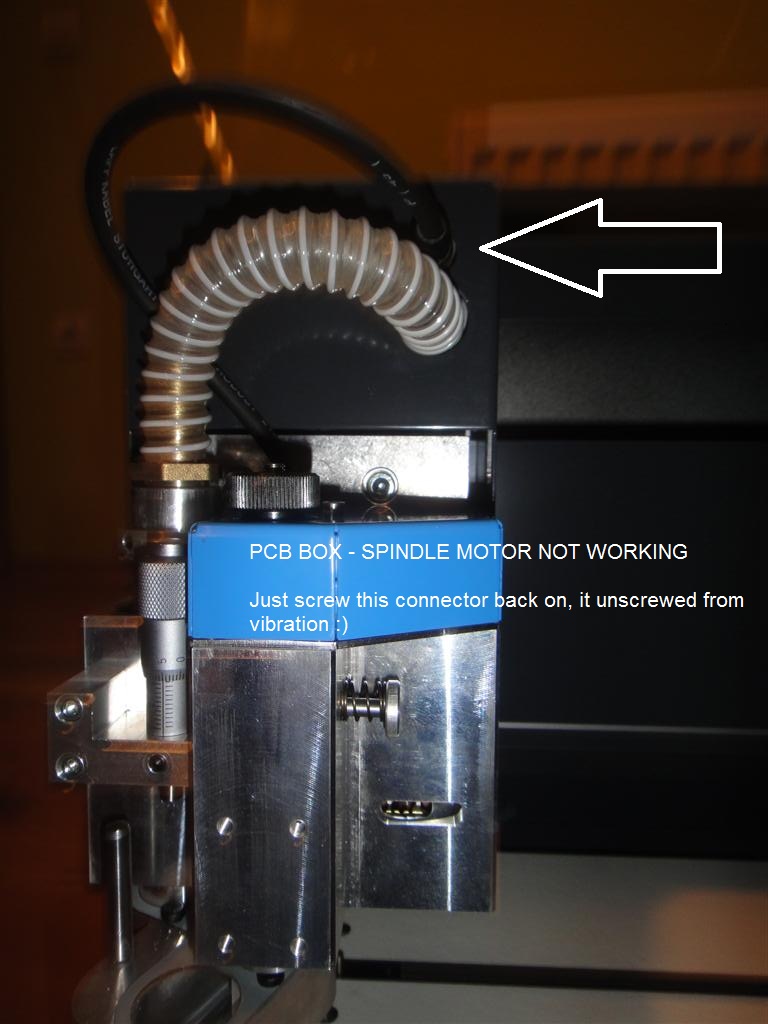

Having mastered PCB milling, I decided to have a go at milling some front panels. I decided to use black/white 1.6mm engraving laminate and created the artwork using Sprint. Yes I know it's for PCB design, but you don't need that much complexity to design a front panel. Lines, arcs and letters and drill holes. That's it. Anyway, my first couple of attempts weren't bad, but I wasn't happy with the header on the panel, so I decided to scan in the original artwork and laboriously recreate the letters. You can see for yourself, the results are pretty impressive! The joy of having all of your holes EXACTLY aligned and EXACTLY the right size for your switches, sockets, LEDs and pots! No more triangular off-centre potentiometer holes, and what's more, the outside dimensions of the panels are so accurate, I milled six 71mm panels to go in a 19 inch rack, and they fit to within a hair's width!
Interestingly, the original dimensions of the front panels are wrong. They were designed to fit into a custom 6U + 3U rack and the top row of panels butted up with the bottom row, so the panels were about 4.5mm longer than they should be, and the mounting holes didn't match those in a standard 19 inch rack. So, I redimensioned them and now everything fits nicely. I've also made one or two slight mods. For example, unless you are a moron, it's obvious that one end of a pot is slow and the other is fast, so I've not bothered with that legend.
So far, my Formant is looking good. PCBs are in the process of being designed and the front panels are coming along nicely. I will also be designing a backplane, as the suggested method of wiring up the edge connectors is just sloppy!
More progress reports when there's any more progress...
